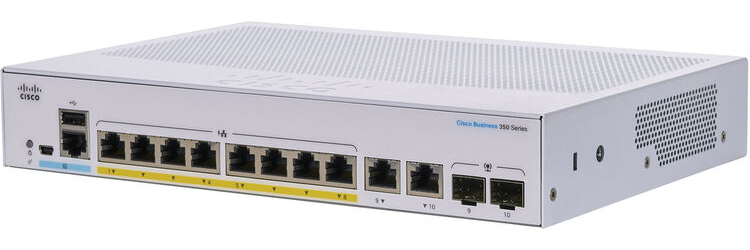

Thiết Bị Mạng Cisco CBS350 Managed 8-port GE, PoE, Ext PS, 2x1G Combo - CBS350-8P-E-2G-EU

Thiết Bị Mạng Cisco CBS350 Managed 8-port GE, PoE, Ext PS, 2x1G Combo - CBS350-8P-E-2G-EU

Mã sản phẩm: CBS350-8P-E-2G-EU
Nhà sản xuất:
Bảo hành: 12 tháng
  • Sản phẩm Thiết bị chuyển mạch Cisco CBS350-8P-E-2G-EU Cisco Business 350 Series, thuộc dòng sản phẩm mạng Cisco Business, là một bộ sưu tập các managed switches giá cả phải chăng cung cấp một khối xây dựng quan trọng cho bất kỳ mạng văn phòng, doanh nghiệp nhỏ nào.
  • 8 10/100/1000 POE+ ports with 67W power budget, 2 Gigabit copper/SFP combo ports

9,120,000 VNĐ

Số lượng:

Sản phẩm liên quan

0

0

0

0

0

0

0

0

15,800,000

19,400,000

2,800,000

0

12,155,000

6,880,000

36,350,000

11,310,000

8,650,000

9,990,000

34,870,000

5,850,000

0

16,120,000

13,910,000

21,290,000

11,280,000

7,630,000

9,120,000

6,490,000

0

1,090,000

0

0

0

8-port Gigabit Ethernet PoE Managed Switch CISCO CBS350-8P-E-2G-EU

- Hỗ trợ 8 cổng Gigabit PoE+ với công suất 67W và 2 cổng Combo Gigabit (cổng đồng RJ45/SFP).

- Dung lượng chuyển mạch: 20 Gbps.

- Jumbo frames: Hỗ trợ kích thước gói dữ liệu lên tới 9K byte. MTU mặc định là 2K byte.

- Bảng MAC: Lưu trữ tối đa 16.000 địa chỉ.

- Loại cáp: Cáp xoắn đôi không bọc (UTP) Cat 5e hoặc tốt hơn cho kết nối 1000BASE-T.

- Bộ nhớ Flash: 256 MB.

- CPU: ARM 800 MHz.

- DRAM: 512 MB.

- Kích thước (R x D x C): 268 x 185 x 44 mm.

- Trọng lượng: 1,53 kg.

Model   CBS350-8P-E-2G-EU
Performance
Capacity in millions of packets per second (mpps) (64-byte packets) 14.88 mpps
Switching capacity 20Gbps
Layer 2 Spanning Tree Protocol
Port grouping/link aggregation
- Up to 8 groups
- Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation​VLAN
-Support for up to 4,094 VLANs simultaneously
-Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN
-Management VLAN
-Private VLAN with promiscuous, isolated, and community port
-Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks
-Guest VLAN, unauthenticated VLAN
-Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication
-CPE VLAN
Voice VLAN
Multicast TV VLAN
VLAN Translation
Q-in-Q
Selective Q-in-Q
Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP)
Unidirectional Link Detection (UDLD)
Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2
Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping
IGMP Querier
Head-of-Line (HOL) blocking
Loopback DetectioN
Layer 3 IPv4 routing
-Wirespeed routing of IPv4 packets
-Up to 990 static routes and up to 128 IP interfaces
IPv6 routing
Layer 3 Interface
-Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface
Classless Interdomain Routing (CIDR)
Policy-Based Routing (PBR)
DHCP Server
DHCP relay at Layer 3
User Datagram Protocol (UDP) relay
General
Jumbo frames Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table 16K addresses
Hardware
Total System Ports 10 x Gigabit Ethernet
RJ-45 Ports 8 x Gigabit Ethernet
Combo Ports (RJ45 + Small form-factor pluggable [SFP]) 2 x Gigabit Ethernet combo
Number of Ports That Support PoE 8
Power Dedicated to PoE 60W
Console port Cisco standard mini USB Type-B/RJ45 console port
USB slot USB Type-A slot on the front panel of the switch for easy file and image management
Buttons Reset button
Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs System, Link/Act, PoE, Speed
Flash 256 MB
CPU 800 MHz ARM
DRAM 512 MB
Packet buffer 1.5 MB
Power consumption (worst case)
System Power Consumption 110V=13.84W
220V=14.31W
Power Consumption (with PoE) 110V=80.79W
220V=80.86W
Heat Dissipation (BTU/hr) 275.91
Environmental
Unit dimensions (W x D x H) 268 x 185 x 44 mm
Unit weight 1.53 kg
Power 100-240V 50-60 Hz, external
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature -5° to 50°C
Storage temperature -25° to 70°C
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failure (MTBF)
FAN (Number) Fanless
MTBF at 25°C (hours) 1,706,649
