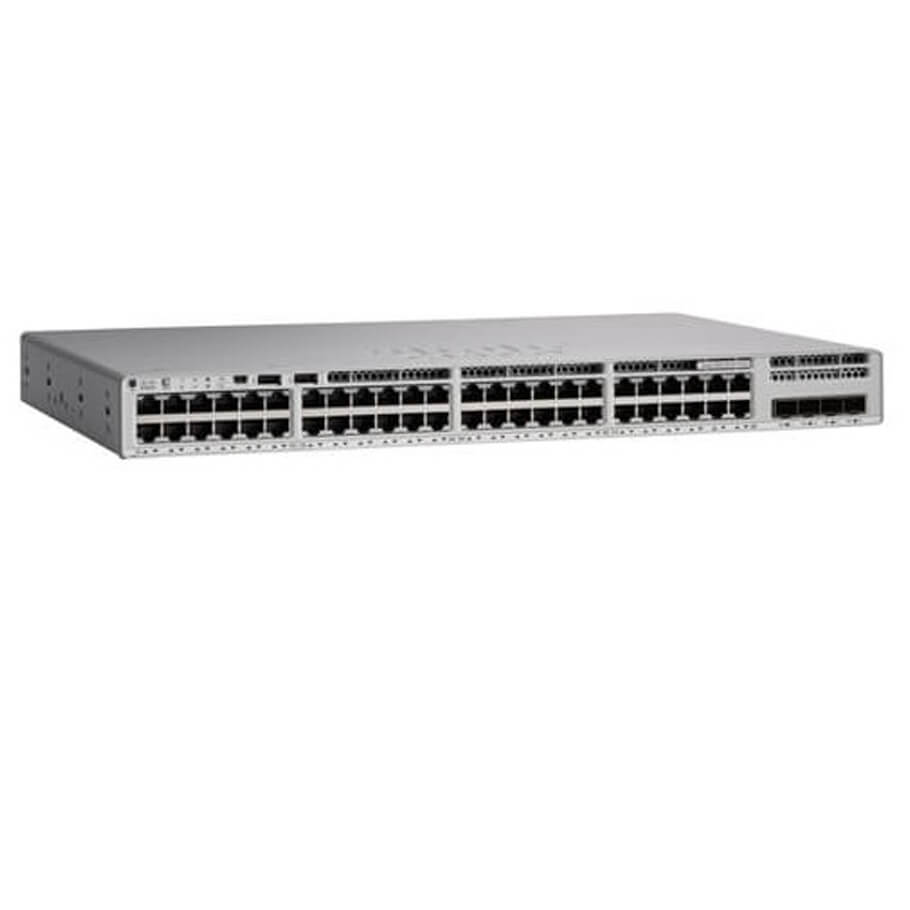

48-port GE Data Switch Cisco C9200L-48T-4G-E

48-port GE Data Switch Cisco C9200L-48T-4G-E

Mã sản phẩm: C9200L-48T-4G-E
Nhà sản xuất:
Bảo hành: 12 tháng

- Số cổng dữ liệu: 48 cổng đồng 10/100/1000.

- Cấu hình uplink: 4 cổng uplink cố định tốc độ 1G.

- Nguồn cấp chính: AC PWR-C5-125WAC.

- Quạt làm mát: Quạt cố định, có tính năng dự phòng.

- Phần mềm: Network Essentials.

- Băng thông xếp chồng: 80 Gbps.

- Bộ nhớ DRAM: 2 GB.

- Bộ nhớ Flash: 4 GB.

- Công suất chuyển mạch: 104 Gbps.

- Tốc độ chuyển tiếp gói: 154.76 triệu gói/giây (Mpps).

- Kích thước khung: 4.4 x 44.5 x 28.8 cm.

- Trọng lượng: 4.35 kg.

Liên hệ báo giá

Sản phẩm liên quan

0

0

0

0

0

0

0

0

15,800,000

19,400,000

2,800,000

0

12,155,000

6,880,000

36,350,000

11,310,000

8,650,000

9,990,000

34,870,000

5,850,000

0

16,120,000

13,910,000

21,290,000

11,280,000

7,630,000

9,120,000

6,490,000

0

1,090,000

0

0

0

Description

Specifications
Performance

Switching capacity

104 Gbps

Forwarding rate

77.38 Mpps

Virtual Networks

1

Stacking bandwidth

80 Gbps

Total number of MAC addresses

16,000

Total number of IPv4 routes (ARP plus learned routes)

11,000 (8,000 direct routes and 3,000 indirect routes)

IPv4 routing entries

3,000

IPv6 routing entries

1,500

Multicast routing scale

1,000

QoS scale entries

1,000

ACL scale entries

1,500

Packet buffer per SKU

6 MB buffers

Flexible NetFlow (FNF) entries

16,000 flows

DRAM

2 GB

Flash

4 GB

VLAN IDs

1024

Total Switched Virtual Interfaces (SVIs)

512

Jumbo frames

9198 bytes

Wireless bandwidth per switch

N/A

Features
Switch fundamentals Layer 2, Routed Access (RIP, EIGRP Stub, OSPF - 1000 routes), PBR, PIM Stub Multicast (1000 routes), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1X, MACsec-128, CoPP, SXP, IP SLA Responder

Automation

NETCONF, RESTCONF, YANG, PnP Agent, PnP

Telemetry and visibility

Model-driven telemetry, sampled NetFlow, SPAN, RSPAN

Security

MACsec-128

Physical Specifications
Chassis Dimensions 1.73 x 17.5 x 11.3 Inches
4.4 x 44.5 x 28.8 Centimeters
weight 9.97 Pounds
4.53 Kilograms
Mean time between failures (hours) 508,700
Connectors
Connectors and cabling
- 1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
- 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
- 100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, dense wavelength-division multiplexing (DWDM) and Coarse Wavelength-Division Multiplexing (CWDM) SFP transceivers: LC fiber connectors (single-mode or multimode fiber)

- Cisco StackWise-80 stacking ports: copper-based Cisco StackWise cabling
- Ethernet management port: RJ-45 connectors, 4-pair Cat 5 UTP cabling
- Management console port: RJ-45-to-DB9 cable for PC connections,USB-C adaptor, USB adaptor
Power connectors
Internal power supply connector: The internal power supply is an auto-ranging unit. It supports input voltages between 100 and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
Standards, Safety and compliance information
Standards

EEE 802.1s

IEEE 802.1w

IEEE 802.1x

IEEE 802.1x-Rev

IEEE 802.3ad

IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1p CoS prioritization

IEEE 802.1Q VLAN

IEEE 802.3 10BASE-T specification

IEEE 802.3u 100BASE-TX specification

IEEE 802.3ab 1000BASE-T specification

IEEE 802.3z 1000BASE-X specification

RMON I and II standa

SNMPv1, v2c, and v3
Safety certifications
- IEC 60950-1
- UL 60950-1
- CAN/CSA C22.2 No. 60950-1
- EN 60950-1
- AS/NZS 60950.1
- Class I Equipment
Electromagnetic emissions certifications
- 47 CFR Part 15
- CISPR 22 Class A
- CISPR 32 Class A
- CNS 13438
- EN 300 386
- EN 55022 Class A
- EN 55032 Class A
- EN61000-3-2
- EN61000-3-3
- ICES-003 Class A
- KN 32
- TCVN 7189 Class A
- V-3 Class A
- CISPR 24
- EN 300 386
- EN 55024
- KN 35
- TCVN 7317
Environmental
Reduction of Hazardous Substances (ROHS) 5
