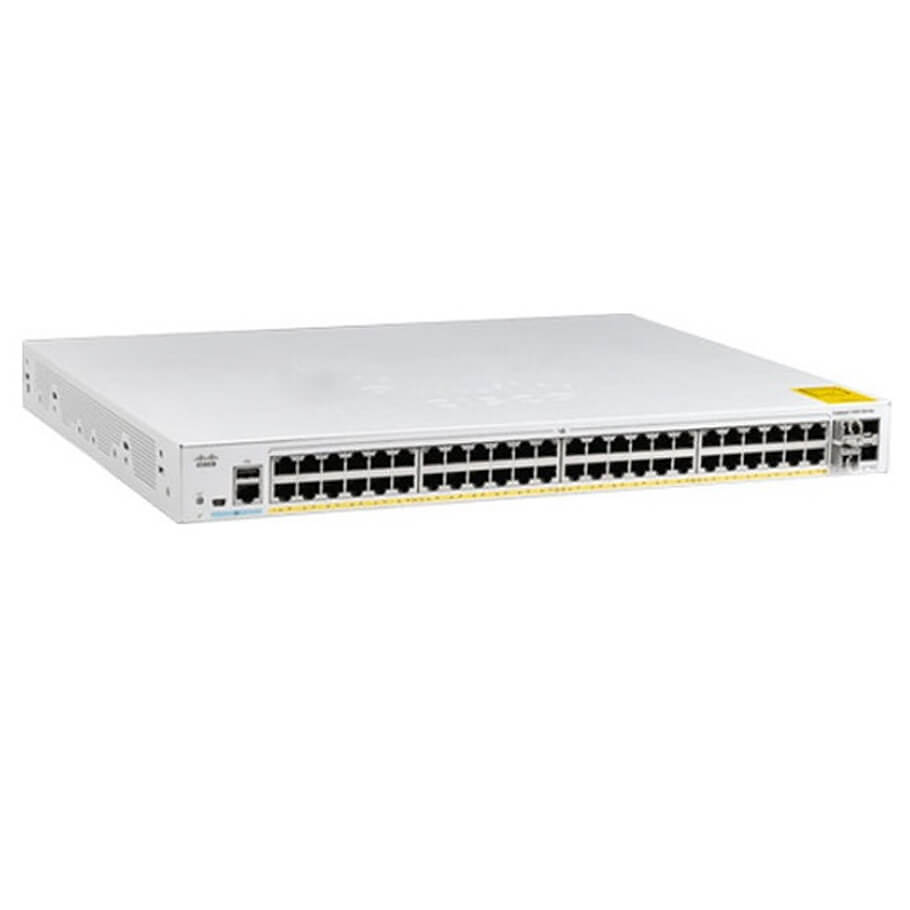

C1000-48FP-4X-L Cisco Catalyst 1000 48x 10/100/1000 ports PoE+, 4x 10G SFP+

C1000-48FP-4X-L Cisco Catalyst 1000 48x 10/100/1000 ports PoE+, 4x 10G SFP+

Mã sản phẩm: C1000-48FP-4X-L
Nhà sản xuất:
Bảo hành: 12 tháng
  • Loại switch: Switch Layer 2, Managed, Rack mount
  • Cổng LAN: 48 Ports 10/100/1000 Ethernet RJ45
  • Cổng SFP+: 4 x 10G SFP+
  • Switch PoE: Có
  • Công suất PoE: 740W
  • Băng thông chuyển mạch: 176 Gbps.
  • Băng thông chuyển tiếp dữ liệu: 88 Gbps.
  • Tốc độ chuyển tiếp gói tin: 130.94 Mpps.
  • Quản lý: CLI, SSH, Telnet, WebUI, App Mobile
  • Mô tả khác: 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 10G SFP+ uplink

Liên hệ báo giá

Sản phẩm liên quan

0

0

0

0

0

0

0

0

15,800,000

19,400,000

2,800,000

0

12,155,000

6,880,000

36,350,000

11,310,000

8,650,000

9,990,000

34,870,000

5,850,000

0

16,120,000

13,910,000

21,290,000

11,280,000

7,630,000

9,120,000

6,490,000

0

1,090,000

0

0

0

Description

Performance
Hardware
Interface 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 10G SFP+ uplinks
PoE power budget 740W
Available PoE power per port 30W for any 24 ports or 15W for 48 ports
Console ports
  • 1x RJ-45 Ethernet
  • 1x USB-A port for storage and Bluetooth console
Indicator LEDs
  • Per-port status: link integrity, disabled, activity
  • System status: system
Dimensions (WxDxH in inches) 17.48 x 13.78 x 1.73
Weight 5.82

Memory and processor

CPU

ARM v7 800 MHz

DRAM

512 MB

Flash memory

256 MB

Performance

Forwarding bandwidth

88 Gbps

Switching bandwidth

176 Gbps

Forwarding rate
(64‑byte L3 packets)

130.94 Mpps

Unicast MAC addresses

16000

IPv4 unicast direct routes

542

IPv4 unicast indirect routes

256

IPv6 unicast direct routes

414

IPv6 unicast indirect routes

128

IPv4 multicast routes and IGMP groups

1024

IPv6 multicast groups

1024

IPv4/MAC security ACEs

600

IPv6 security ACEs

600

Maximum active VLANs

256

VLAN IDs available

4094

Maximum STP instances

64
Maximum SPAN sessions 4
MTU-L3 packet 9198 bytes
Jumbo Ethernet frame 10,240 bytes
Dying Gasp Yes

Electrical
Power

Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Voltage (auto ranging) 110 to 220V AC in
Frequency 50 to 60 Hz
Current 0.29A to 0.48A
Power rating (maximum consumption) 0.09 kVA
Safety and compliance
Safety

UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1
GB 4943.1-2011
EMC: Emissions 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: Immunity EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco Common Language Equipment Identifier (CLEI) code
U.S. government certifications USGv6 and IPv6 Ready Logo
