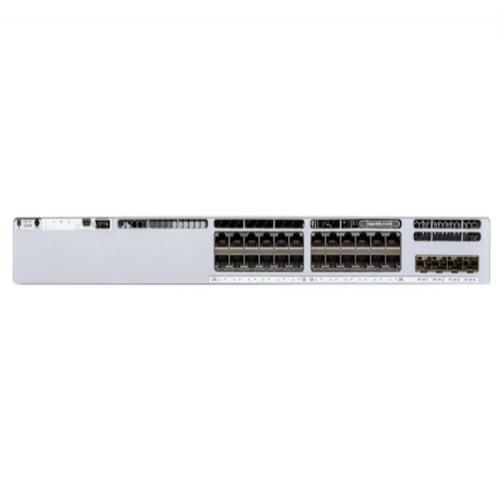

Switch Cisco C9300L-24T-4G-E 24 Ports GE, 4X1G uplinks, Network Essentials

Switch Cisco C9300L-24T-4G-E 24 Ports GE, 4X1G uplinks, Network Essentials

Mã sản phẩm: C9300L-24T-4G-E
Nhà sản xuất:
Bảo hành: 12 tháng
  • Số cổng: 24 cổng Gigabit Ethernet
  • Cổng uplink: 4 cổng 1G SFP
  • Loại switch: Layer 3, tích hợp Network Essentials
  • RAM và Flash: 8GB RAM, 16GB Flash
  • Nguồn: AC 350W (PWR-C1-350WAC-P)
  • Hỗ trợ PoE: Không hỗ trợ PoE
  • Băng thông chuyển mạch: 56 Gbps
  • Tốc độ chuyển tiếp: 41.66 Mpps
  • Routing: Hỗ trợ BGP, OSPF, EIGRP, ISIS, RIP, Static route
  • Quản lý: CLI, Web UI, Cisco DNA Center, Meraki Dashboard

Liên hệ báo giá

Sản phẩm liên quan

0

0

0

0

0

0

0

0

15,800,000

19,400,000

2,800,000

0

12,155,000

6,880,000

36,350,000

11,310,000

8,650,000

9,990,000

34,870,000

5,850,000

0

16,120,000

13,910,000

21,290,000

11,280,000

7,630,000

9,120,000

6,490,000

0

1,090,000

0

0

0

Description

Performance

Interface

24 Ports 10/100/1000, 4x 1G fixed uplinks

Switching capacity

56 Gbps

Stacking bandwidth

320 Gbps

Switching capacity with stacking

376 Gbps

Forwarding rate

41.66 Mpps

Forwarding rate with stacking

279.76 Mpps

Total number of MAC addresses

32,000

Total number of IPv4 routes (ARP plus learned routes)

32,000 (24,000 direct routes and 8000 indirect routes)

IPv4 routing entries

32,000

IPv6 routing entries

16,000

Multicast routing scale

8000

QoS scale entries

5120

ACL scale entries

5120

Packet buffer per SKU

16 MB buffer

FNF entries

64,000 flow

DRAM

8 GB

Flash

16 GB

VLAN IDs

4094

Total Switched Virtual Interfaces (SVIs)

1000

Jumbo frames

9198 bytes

Total routed ports per 9300 Series stack

416
Feature

Switch fundamentals

Layer 2, Routed Access (RIP, EIGRP Stub, OSPF - 1000 routes), PBR, PIM Stub Multicast (1000 routes)), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1X, MACsec-128, CoPP, SXP, IP SLA Responder, SSO

Automation

NETCONF, RESTCONF, gRPC, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python)

Telemetry and visibility

Model-driven telemetry, sampled NetFlow, SPAN, RSPAN

Dimensions, Weight, and Mean Time Between Failures Metrics

Dimensions (H x W x D)

1.73 X 17.5 X 17.7 inch / 4.4 x 44.5 x 44.9 cm

Weight

14.93 Pounds / 6.78 Kilograms

Mean time between failures (hours)

395,800

Safety and Compliance Information
Safety certifications
-  UL 60950-1
-  CAN/CSA-C222.2 No. 60950-1
-  EN 60950-1
-  IEC 60950-1
-  AS/NZS 60950.1
-  IEEE 802.3
Electromagnetic emissions certifications
-  47 CFR Part 15
-  CISPR22 Class A
-  EN 300 386 V1.6.1
-  EN 55022 Class A
-  EN 55032 Class A
-  CISPR 32 Class A
-  EN61000-3-2
-  EN61000-3-3
-  ICES-003 Class A
-  TCVN 7189 Class A
-  V-3 Class A
-  CISPR24
-  EN 300 386
-  EN55024
-  TCVN 7317
-  V-2/2015.04
-  V-3/2015.04
-  CNS13438
-  KN32
-  KN35
Additional Certifications for C9300L SKUs:
-  QCVN 118:2018/BTTTT
-  VCCI-CISPR 32 Class A
Environmental Reduction of Hazardous Substances (ROHS) 5
