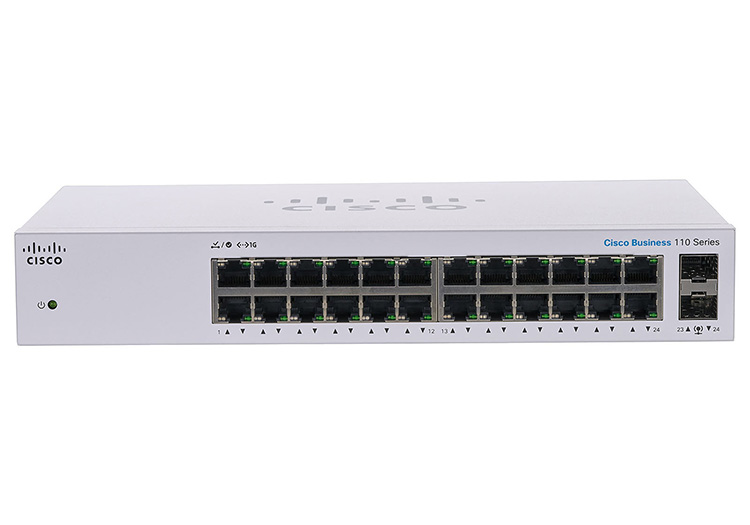

Switch Cisco CBS110-24T-EU 24 Ports GE, 2 GE Combo Uplink

Switch Cisco CBS110-24T-EU 24 Ports GE, 2 GE Combo Uplink

Mã sản phẩm: CBS110-24T-EU
Nhà sản xuất:
Bảo hành: 12 tháng
  • Tốc độ Lan: 10/100/1000Mbps Ethernet Gigabit.
  • Số cổng: 26x Gigabit Ethernet Ports.
  • Cổng kết nối RJ45: 24x Gigabit Ethernet RJ-45 ports.
  • Cổng Combo: 2x 1G SFP/RJ45
  • Switch quản lý: Unmanaged switch.
  • Switch PoE: không hỗ trợ.
  • Switching capacity: 48 Gbps.
  • Forwarding rate: 35.7 mpps
  • Kiểu Switch: switch unmanaged, desktop, fanless.

Liên hệ báo giá

Sản phẩm liên quan

0

0

0

0

0

0

0

0

15,800,000

19,400,000

2,800,000

0

12,155,000

6,880,000

36,350,000

11,310,000

8,650,000

9,990,000

34,870,000

5,850,000

0

16,120,000

13,910,000

21,290,000

11,280,000

7,630,000

9,120,000

6,490,000

0

1,090,000

0

0

0

Model CBS110-24T-EU
Performance
Switching capacity in gigabits per second (Gbps) 48 Gbps
Capacity in millions of packets per second (mpps) (64-byte packets) 35.7 mpps
General
Head-of-line (HOL) blocking HOL blocking prevention
MAC table 2K
Jumbo frame 9216 bytes
Quality of Service (QoS) 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection Helps discover loops in the network to avoid broadcast storms
Cable diagnostics Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Hardware
Ports 24 Gigabit Ethernet
2 SFP (combo with 2 Gigabit Ethernet)
LEDs Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE, Max PoE, if present
Cabling type Category 5e or better
Mounting options Desktop, wall-mount or rack mount
Physical security lock Kensington lock slot
Flash 8MB
CPU 400MHz ARM
CPU memory 64MB
Packet buffer 2 Mbit
Environmental
Unit dimensions (W x D x H) 279 x 170 x 44 mm
Weight 1.56kg
Power 110-240VAC, 50-60 Hz, internal, universal
System power consumption 110V=16.3W
220V=16.34W
Heat dissipation (BTU/hr) 55.75
Green (power efficiency) Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Compliance/certifications UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature 32° to 104°F (0° to 40°C)
Storage temperature –4° to 158°F (–20° to 70°C)
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 5% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failures (MTBF)
Fan (number) Fanless
MTBF at 25°C (hours) 524,296
