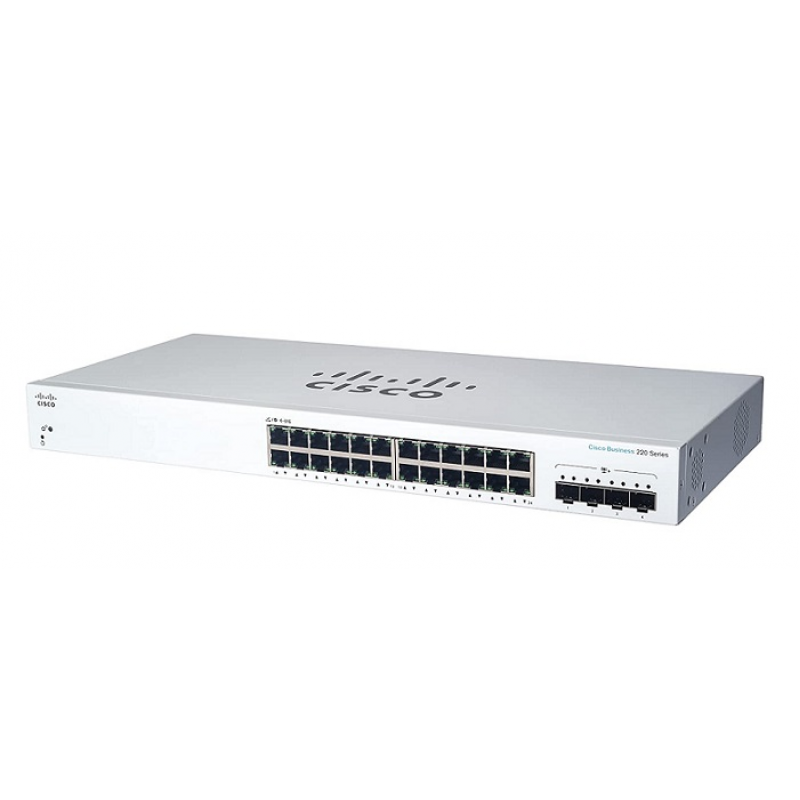

CBS220-24T-4X-EU Switch Cisco 24 Ports 1GE, 4 Ports 10G SFP+ Uplink

CBS220-24T-4X-EU Switch Cisco 24 Ports 1GE, 4 Ports 10G SFP+ Uplink

Mã sản phẩm: CBS220-24T-4X-EU

Nhà sản xuất:	Cisco
Bảo hành:	12 tháng

Switch Cisco CBS220-24T-4X-EU là thiết bị chuyển mạch thông minh thuộc dòng sản phẩm CBS220. Với thiết kế có 24 cổng 1GE và 4 cổng 10G SFP+ Uplink, tốc độ chuyển mạch 128Gbps với đầy đủ tính năng của dòng switch layer 2 đảm bảo việc truy cập internet tốc độ cao cho mạng doanh nghiệp .

Switch CBS220-24T-4X-EU còn rất dễ quản lý với các giao diện dựa trên web trực quan và đơn giản cho phép người dùng không có chuyên môn sâu về CNTT có thể định cấu hình, quản lý và khắc phục sự cố.

11,280,000 VNĐ

Số lượng:

Sản phẩm liên quan

Switch Cisco CBS110-24T-EU 24 Ports GE, 2 GE Combo Uplink

Thông số kĩ thuật

Specifications - Datasheet CBS220-24T-4X-EU
Performance
Forwarding rate in millions of packets per second (mpps; 64-byte packets)	95.23 Mpps
Switching Capacity in Gigabits per Second	128 Gbps
Layer 2 Switching	MAC table: - Up to 8,192 Media Access Control (MAC) addresses Spanning Tree Protocol: - Standard 802.1d Spanning Tree support, enabled by default - Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]) - Multiple Spanning Tree instances using 802.1s (MSTP) - 16 instances are supported Port grouping/link aggregation: - Up to 8 groups - Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregationVLAN - Support for up to 256 Virtual Local Area Networks (VLANs) simultaneously - Port-based and 802.1Q tag-based VLANs - Management VLAN - Guest VLAN Auto voice VLAN QinQ VLAN Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) Head-of-Line (HOL) blocking: HOL blocking prevention Jumbo frame: Frame sizes up to 9,216 supported Loopback detection Automatic Media-Dependent Interface Crossover (MDIX)
Security	ACLs Support for up to 512 rules Port security IEEE 802.1X (Authenticator role) RADIUS, TACACS+ MAC address filtering Storm control DoS protection STP Bridge Protocol Data Unit (BPDU) Guard Spanning Tree Loop Guard Secure Shell (SSH) Protocol Secure Sockets Layer (SSL)
Management	Cisco Business Dashboard Cisco Business mobile app Cisco Network Plug and Play (PnP) agent Web user interface Text-editable config files Command-line interface SNMP Standard Management Information Bases (MIBs) Remote Monitoring (RMON) IPv4 and IPv6 dual stack Port mirroring DHCP (Option 12, 66, 67, 82, 129, and 150) Time synchronization Login banner HTTP/HTTPS; TFTP upgrade; DHCP client; Bootstrap Protocol (BOOTP); cable diagnostics; ping; traceroute; syslog
Power over Ethernet (PoE)
Power Dedicated to PoE	N/A
Number of Ports That Support PoE	No
Power consumption
System Power Consumption	110V=23.2W 220V=23.6W
Power Consumption (with PoE)	N/A
Heat Dissipation (BTU/hr)	80.5
Hardware
Total System Ports	24 x Gigabit Ethernet and 4 x 10Gigabit SFP+
RJ-45 Ports	24 x Gigabit Ethernet
Uplink ports	4 x 10Gigabit SFP+
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Flash	64 MB
Memory	256 MB
Packet buffer	12 Mb
Environmental
Unit dimensions (W x H x D)	440 x 203 x 44 mm (17.3 x 8.0 x 1.7 in)
Unit weight	2.69 kg (5.93 lb)
Power	100-240V, 50-60 Hz, internal, universal
Storage temperature	-20° C to +70° C
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failure (MTBF)
Fan (number)	1
Acoustic Noise	25°C: 34 dB
MTBF at 25°C (hours)	1,372,359
