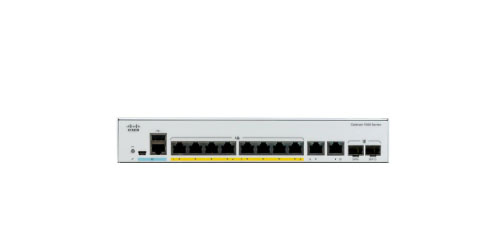

C1000-8P-2G-L | Switch Cisco Catalyst 1000™ 8 Ports PoE+ 67W, 2 GE Combo Uplink

C1000-8P-2G-L | Switch Cisco Catalyst 1000™ 8 Ports PoE+ 67W, 2 GE Combo Uplink

Mã sản phẩm: C1000-8P-2G-L
Nhà sản xuất:
Bảo hành: 12 tháng
  • Cổng LAN: 8 Ports 10/100/1000Mpbs RJ-45 PoE+.
  • Cổng Uplink: 2 Ports combo SFP/ RJ-45.
  • Switch PoE: có.
  • Công suất PoE: 65W.
  • Fanless: có.
  • Switching bandwidth: 20 Gbps.
  • Forwarding rate: 14.88 Mpps.
  • Forwarding bandwidth: 10 Gbps.
  • Quản lý: CLI, Web UI.
  • Mô tả khác: 8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget , 2x 1G SFP and RJ-45 combo uplinks.

5,850,000 VNĐ

Số lượng:

Sản phẩm liên quan

0

0

0

0

0

0

0

0

15,800,000

19,400,000

2,800,000

0

12,155,000

6,880,000

36,350,000

11,310,000

8,650,000

9,990,000

34,870,000

5,850,000

0

16,120,000

13,910,000

21,290,000

11,280,000

7,630,000

9,120,000

6,490,000

0

1,090,000

0

0

0

Datasheet C1000-8P-2G-L

Description

Performance
Hardware
Interface 8x 10/100/1000 Ethernet ports PoE+, 2x 1G SFP and RJ-45 combo uplinks
Console ports
  • 1x RJ-45 Ethernet
  • 1x USB-A port for storage and Bluetooth console
Indicator LEDs
  • Per-port status: link integrity, disabled, activity
  • System status: system
Dimensions (WxDxH in inches) 10.56 x 12.73 x 1.73

Memory and processor

CPU

ARM v7 800 MHz

DRAM

512 MB

Flash memory

256 MB

Performance

Forwarding bandwidth

10 Gbps

Switching bandwidth

20 Gbps

Forwarding rate
(64‑byte L3 packets)

14.88 Mpps

Unicast MAC addresses

16000

IPv4 unicast direct routes

542

IPv4 unicast indirect routes

256

IPv6 unicast direct routes

414

IPv6 unicast indirect routes

128

IPv4 multicast routes and IGMP groups

1024

IPv6 multicast groups

1024

IPv4/MAC security ACEs

600

IPv6 security ACEs

600

Maximum active VLANs

256

VLAN IDs available

4094

Maximum STP instances

64
Maximum SPAN sessions 4
MTU-L3 packet 9198 bytes
Jumbo Ethernet frame 10,240 bytes
Dying Gasp Yes

Electrical
Power

Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Voltage (auto ranging) 110 to 220V AC in
Frequency 50 to 60 Hz
Current 0.22A to 0.27A
Power rating (maximum consumption) 0.11 kVA
PoE Support PoE+ 67W
Total PoE Ports 30W for any 2 ports or 15W for any 4 ports
Safety and compliance
Safety

UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1
GB 4943.1-2011
EMC: Emissions 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
EMC: Immunity EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco Common Language Equipment Identifier (CLEI) code
U.S. government certifications USGv6 and IPv6 Ready Logo
