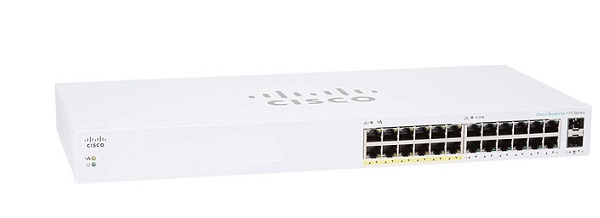

CBS110-24PP-EU Switch Cisco 24 Cổng (12 Port PoE), 2 GE Combo Uplink

CBS110-24PP-EU Switch Cisco 24 Cổng (12 Port PoE), 2 GE Combo Uplink

Mã sản phẩm: CBS110-24PP-EU
Nhà sản xuất:
Bảo hành: 12 tháng
  • Switch Type: Switch Unmanaged
  • Ethernet Ports: 24 RJ45 ports 10/100/1000 Mbps
  • Combo port: 2 Gigabit SFP combo with 2 RJ45 ports 1G
  • Switching capacity: 48 Gbps
  • Capacity in millions of packets per second: 35.7 Mpps
  • PoE: 12 ports RJ45 support PoE with 100W power budget
  • Fan: Fanless
  • Rack-mountable

6,880,000 VNĐ

Số lượng:

Sản phẩm liên quan

0

0

0

0

0

0

0

0

15,800,000

19,400,000

2,800,000

0

12,155,000

6,880,000

36,350,000

11,310,000

8,650,000

9,990,000

34,870,000

5,850,000

0

16,120,000

13,910,000

21,290,000

11,280,000

7,630,000

9,120,000

6,490,000

0

1,090,000

0

0

0

Model CBS110-24PP-EU
Performance
Capacity in millions of packets per second (64-byte packets) 35.7 mpps
Switching capacity 48 Gbps
General
Head-of-line (HOL) blocking HOL blocking prevention
MAC table 8K addresses
Jumbo frame 9216 bytes
Quality of Service (QoS) 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection Helps discover loops in the network to avoid broadcast storms
Cable diagnostics Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Hardware
Total system ports 24 Gigabit Ethernet
RJ-45 ports 24 Gigabit Ethernet
Combo ports (RJ-45 + Small Form-factor Pluggable [SFP]) 2 SFP (combo with 2 Gigabit Ethernet)
Number of ports that support PoE 12
Power dedicated to PoE 100W
LEDs Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE,  Max PoE.
Cabling type Category 5e or better
Mounting options Desktop, wall-mount or rack mount
Physical security lock Kensington lock slot
Flash 8MB
CPU 400MHz ARM
CPU memory 64MB
Packet buffer 2 Mbit
Environmental
Unit dimensions (W x D x H) 440 x 203 x 44 m
Unit weight 2.98 kg
Power 110-240VAC, 50-60 Hz, internal, universal
Green (power efficiency) Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Compliance/certifications UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature 0° to 40°C
Storage temperature –20° to 70°C
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 5% to 90%, relative, noncondensing
Power consumption (worst case)
System power consumption 110V=17.21W
220V=17.29W
Power consumption (with PoE) 110V=135.67W
220V=133.82W
Heat dissipation (BTU/hr) 462.93
Acoustic noise and Mean Time Between Failures (MTBF)
Fan (number) Fanless
MTBF at 25°C (hours) 340,703
