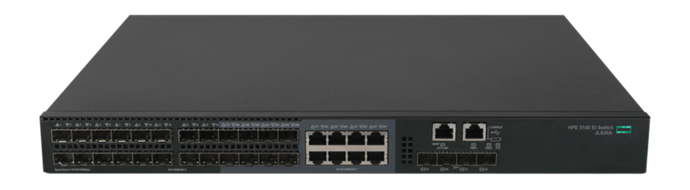

Thiết Bị Mạng HPE FlexNetwork 5140 24 SFP w/8G Combo 4 SFP+ EI Switch JL826A Layer 3

Thiết Bị Mạng HPE FlexNetwork 5140 24 SFP w/8G Combo 4 SFP+ EI Switch JL826A Layer 3

Mã sản phẩm: JL826A
Nhà sản xuất:
Bảo hành: 24 tháng
  • Switching Capacity : 128 Gbps
  • Throughput:  95 Mpps
  • Memory:  512 GB SDRAM , 256 MB Flash
  • 4 SFP+ fixed 1000/10000 SFP+ ports
  • 16 SFP 100/1000 Mbps ports

Liên hệ báo giá

Sản phẩm liên quan

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1,580,000

0

0

0

0

0

0

0

0

0

0

0

4,257,000

2,850,000

0

5,750,000

2,375,000

0

0

0

15,990,000

3,400,000

13,239,000

18,725,000

3,920,000

9,492,000

3,130,000

1,199,000

56,160,000

22,850,000

0

0

8,110,000

0

17,325,000

6,910,000

0

0

4,950,000

9,999,000

9,999,000

3,580,000

Mã sản phẩm JL826A
Hệ điều hành HPE Firmware
Routing / Switching Layer 3
Quản lý Managed
Cổng kết nối
Ports 16 cổng SFP 100/1000 Mbps; 8 cổng combo (RJ-45 10/100/1000 hoặc SFP); 4 cổng SFP+ 1G/10G
Additional ports and slots 1 RJ-45 serial console port
Memory and Processor
Memory 512 GB SDRAM , 256 MB Flash
Hiệu suất
Throughput 95 Mpps
Switching Capacity 128 Gbps
MAC Address Table Size 16,384 entries
Routing table size 1024 entries
1000 Mb latency < 5 s
10 Gbps latency < 3 s
Đặc điểm dòng điện
Nguồn 2 power supply slots 1 minimum power supply required (ordered separately)
Frequency 50-60Hz
Voltage 100 VAC–240 VAC
Maximum power rating 24W
Quản lý
Management IMC; SmartMC, command-line interface; web browser; SNMP manage
Mounting
Mounting Mounts in an EIA standard 19 inch telco rack or equipment cabinet (HPE 5140 E Rack Mount Kit [R8M91A] sold separately)
Thông số vật lý
Fan Tray Airflow direction is from side to back
Kích thước 44 cm x 36 cm x 4.36 cm
Trọng lượng 13.23 lb (6 kg)
Môi Trường
Operating temperature 23°F to 113°F (–5°C to 45°C)
Operating relative humidity 10% to 90%, noncondensing
