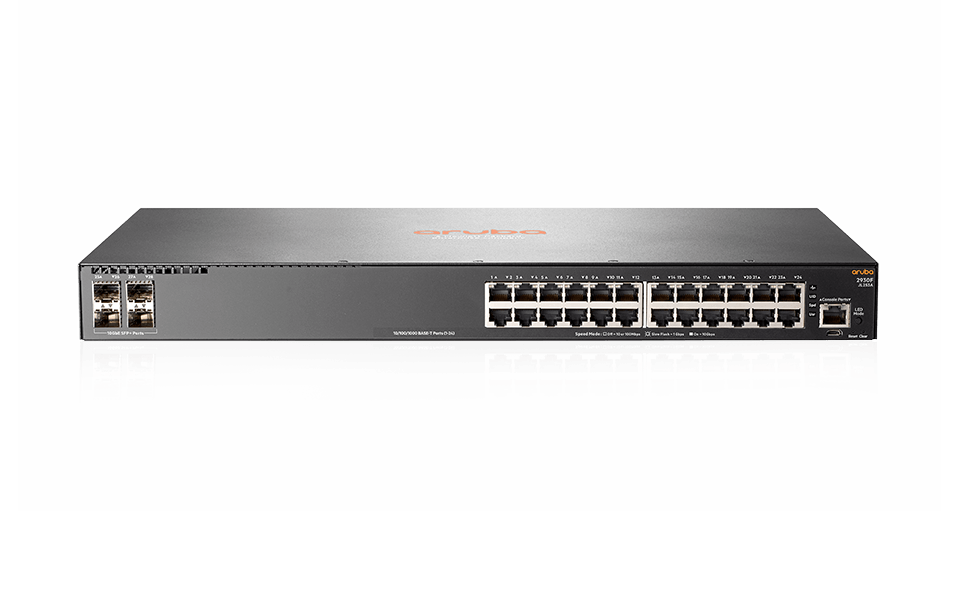

Aruba 2930F 24G 4SFP+ Switch JL253A

Aruba 2930F 24G 4SFP+ Switch JL253A

Mã sản phẩm: JL253A
Nhà sản xuất:
Bảo hành: 24 tháng
  • Số cổng kết nối: 24x RJ45, 4x SFP+
  • CPU: Dual Core ARM Coretex A9 @ 1016 MHz
  • RAM: 1 GB DDR3 SDRAM
  • Tỉ lệ chuyển tiếp: 95.2 Mpps
  • Dung lượng chuyển mạch: 128 Gbps
  • Nguồn điện vào: 100 - 240 VAC
  • Nhiệt độ hoạt động: 32°F to 113°F (0°C to 45°C)
  • Kích thước: 1U
  • Management: Command-line interface, Web browser, SSH, Telnet ...

Liên hệ báo giá

Sản phẩm liên quan

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1,580,000

0

0

0

0

0

0

0

0

0

0

0

4,257,000

2,850,000

0

5,750,000

2,375,000

0

0

0

15,990,000

3,400,000

13,239,000

18,725,000

3,920,000

9,492,000

3,130,000

1,199,000

56,160,000

22,850,000

0

0

8,110,000

0

17,325,000

6,910,000

0

0

4,950,000

9,999,000

9,999,000

3,580,000

I/O ports and slots

24x RJ45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4x SFP+ 1/10GbE ports; PHY-less
Additional ports and slots

1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics

Dimensions: 17.42(w) x 7.88(d) x 1.73(h) in (44.25 x 20.02 x 4.39 cm) (1U height)
Weight: 5.31 lb (2.41 kg)
Memory and processor

Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC
Mounting and enclosure Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); Horizontal surface mounting; Wall mounting
Performance

1000 Mb Latency < 3.8 µs (64-byte packets)
100 Gb Latency < 1.6 µs (64-byte packets)
Throughut up to 95.2 Mpps
Switching capacity: 128 Gbps
MAC address table size: 32768 entries
Environment

Operating temperature: 32°F to 113°F (0°C to 45°C)
Operating relative humidity: 5% to 95%, noncondensing
Nonoperating/Storage temperature:-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity:15% to 95% @ 149°F (65°C), noncondensing
Altitude: up to 10,000 ft (3 km)
Acoustic: Power: 49.7 dB, Pressure: 37.1 dB
Electrical characteristics

Frequency: 50/60 Hz
Maximum heat dissipation: 100 BTU/hr (105.5 kJ/hr)
Voltage: 100 - 240 VAC, rated
Notes: Maximum power rating and maximum heat dissipation are the worst-case theoretical : maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated
Safety UL 60950-1, 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Emissions

EN 55022:2010/CISPR 22 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Management Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band management (serial RS-232C or micro USB), aruba switch configuration guide, aruba switch default enable password
