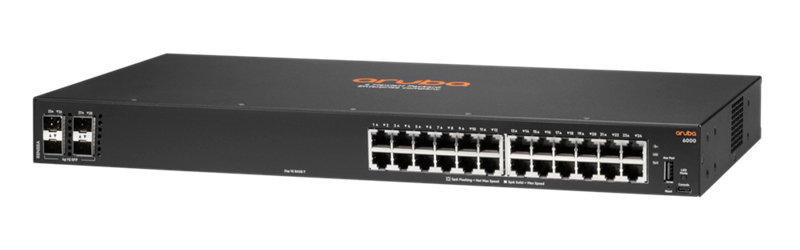

Switch R8N88A Aruba 6000 24 Ports GbE, 4 Ports Uplink 1G SFP

Switch R8N88A Aruba 6000 24 Ports GbE, 4 Ports Uplink 1G SFP

Mã sản phẩm: R8N88A
Nhà sản xuất:
Bảo hành: 24 tháng

Switch Aruba 6000 24G 4SFP (R8N88A)
24x ports 10/100/1000BASE-T Ports
● 4x 1G SFP ports
● 1x USB-C Console Port
● 1x USB Type-A Host port

Liên hệ báo giá

Sản phẩm liên quan

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1,580,000

0

0

0

0

0

0

0

0

0

0

0

4,257,000

2,850,000

0

5,750,000

2,375,000

0

0

0

15,990,000

3,400,000

13,239,000

18,725,000

3,920,000

9,492,000

3,130,000

1,199,000

56,160,000

22,850,000

0

0

8,110,000

0

17,325,000

6,910,000

0

0

4,950,000

9,999,000

9,999,000

3,580,000

Datasheet R8N88A
SPECIFICATIONS
Description

- 24x ports 10/100/1000BASE-T Ports

- 4x 1G SFP ports

- 1x USB-C Console Port

- 1x USB Type-A Host port
Power supplies

Fixed power supply
Fans Fixed fans
Physical characteristics
Dimensions

(H) 4.39 cm (W)

44.2 cm (D)

20.12 cm

(1.73” x 17.4” x 7.92”)
Configuration Weight 2.62 kg (5.78 lbs)
Additional Specifications
CPU Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash

4 GB DDR3

16 GB eMMC
Packet Buffer 12.38MB (4.5MB Ingress/7.875MB Egress)
Performance
Model Switching Capacity 104 Gbps
Model Throughput Capacity 77.3 Mpps
Average Latency (LIFO-64-bytes packets) 1 Gbps: 1.5 μSec , 10 Gbps: 1.8 μSec
Switched Virtual Interfaces (dual stack) 16
IPv4 Host Table (ARP) 1,024
MLD Groups 512
IPv4/IPv6/MAC ACL Entries (ingress) 256 / 128 / 256
