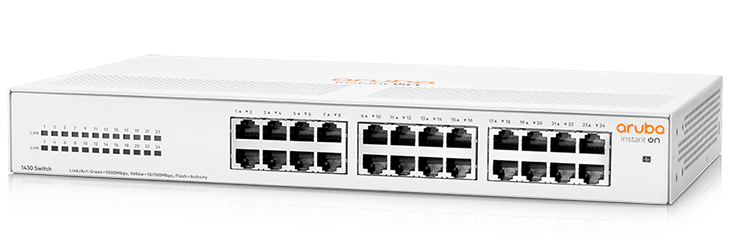

Thiết bị chuyển mạch Switch Aruba Instant On 1430 24G _ R8R49A

Thiết bị chuyển mạch Switch Aruba Instant On 1430 24G _ R8R49A

Mã sản phẩm: R8R49A
Nhà sản xuất:
Bảo hành: 24 tháng

• Plug-and-play

• 24 RJ-45 autosensing 10/100/1000 ports

• Quality of Service (QoS) and flow control for VoIP, Video

• Throughput: 35.71 Mpps

• Switching Capacity: 48 Gbps

• MAC address tablesize (# of entries): 8192 entries

• Nguồn điện vào : 100-127VAC / 200-240VAC

• Công suất tiêu thụ tối đa : 11.7 W

4,950,000 VNĐ

Số lượng:

Sản phẩm liên quan

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1,580,000

0

0

0

0

0

0

0

0

0

0

0

4,257,000

2,850,000

0

5,750,000

2,375,000

0

0

0

15,990,000

3,400,000

13,239,000

18,725,000

3,920,000

9,492,000

3,130,000

1,199,000

56,160,000

22,850,000

0

0

8,110,000

0

17,325,000

6,910,000

0

0

4,950,000

9,999,000

9,999,000

3,580,000

I/O ports and slots
I/O ports and slots 24 RJ-45 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);
Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only
Physical Characteristics
Dimensions 225(d) x 340(w) x 44(h) mm
Weight 4.20 lb (1.91 kg)
Processor and Memory
Processor and Memory 128Kb EEPROM; Packet buffer size: 2.0 Mb
Performance
100 Mb latency < 2.7 μSec
1000 Mb latency < 1.80 μSec
Throughput (Mpps) 35.71 Mpps
Capacity 48 Gbps
MAC address table size 8192 entries
Reliability MTBF (years) 199.5
Environment
Operating temperature 32°F to 104°F (0°C to 40°C)
Operating relative humidity 15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/ storage temperature -40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/ storage relative humidity 15% to 95% @ 149°F (65°C) non-condensing
Altitude up to 10,000 ft (3 km)
Acoustics
Acoustics Fanless
Electrical Characteristics
Frequency 50Hz/60Hz
AC voltage 100-127VAC / 200- 240VAC
Current 0.3A / 0.2A
Maximum power rating 11.7W
Idle power 3.2W
Power supply Internal Power Supply
Safety
Safety EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 3rd.Ed.
CAN/CSA C22.2 No.62368-1, 3rd. Ed.
EN/IEC 60825-1:2018
