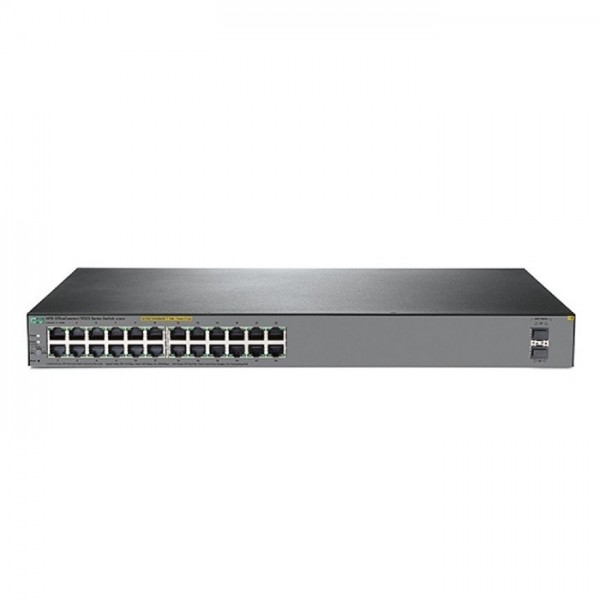

JL385A Switch HPE OfficeConnect 1920S 24 Port 1G 2SFP PoE+ 370W

JL385A Switch HPE OfficeConnect 1920S 24 Port 1G 2SFP PoE+ 370W

Mã sản phẩm: JL385A
Nhà sản xuất:
Bảo hành: 24 tháng

- The HPE OfficeConnect 1920S Switch Series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution.

- These switches provide a great value, and includes features to satisfy even the most advanced small business networks. Customizable features include basic Layer 2 features like VLANs and link aggregation, as well as advanced features such as Layer 3 static routing, IPv4 and IPv6 Host mode, ACLs, and Spanning Tree Protocols.

Liên hệ báo giá

Sản phẩm liên quan

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1,580,000

0

0

0

0

0

0

0

0

0

0

0

4,257,000

2,850,000

0

5,750,000

2,375,000

0

0

0

15,990,000

3,400,000

13,239,000

18,725,000

3,920,000

9,492,000

3,130,000

1,199,000

56,160,000

22,850,000

0

0

8,110,000

0

17,325,000

6,910,000

0

0

4,950,000

9,999,000

9,999,000

3,580,000

I/O ports and slots

24 RJ-45 autosensing 10/100/1000 PoE+ ports; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 SFP 100/1000 Mbps ports (IEEE 802.3z Type 1000BASE-X, IEEE 802.3u Type 100BASE-FX)
Additional ports and slots 2 SFP 100/1000 Mbps ports
Physical characteristics

Dimensions: 17.42(w) x 12.7(d) x 1.73(h) in (44.25 x 32.26 x 4.39 cm) (1U height)

Weight: 9.7 lb (4.4 kg)
Memory and processor ARM Cortex-A9 @ 400 MHz, 256 MB SDRAM, 64 MB flash; packet buffer: 1.5 MB
Mounting and enclosure
Performance

100 Mb Latency < 7.0 µs
1000 Mb Latency < 2.0 µs
ThrougHPEut 77.3 Mpps
Switching capacity: 52 Gbps
MAC address table size: 16,000 entries
Environment

Operating temperature: 32°F to 104°F (0°C to 40°C)
Operating relative humidity: 5% to 95%, noncondensing
Nonoperating/Storage temperature:-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity:15% to 95% @ 140°F (60°C)
Altitude: up to 16,404 ft (5 km)
Acoustic: No Fan
Electrical characteristics

Frequency: 50/60 Hz
Voltage: 100 - 240 VAC, rated
Maximum power rating: 435 W
Notes: Maximum power rating and maximum heat dissipation are the worst-case theoretical : maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated
Safety UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1
Emissions

VCCI Class A; CNS 13438; ICES-003 Issue 5 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015/CISPR-32
Device Management Web browser
