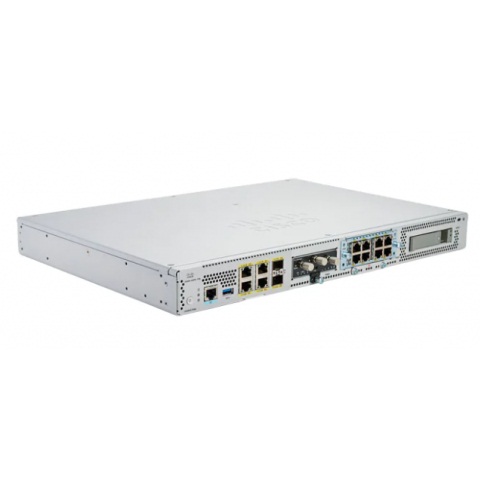

Thiết Bị Mạng Cisco Catalyst 8200 C8200L-1N-4T

Thiết Bị Mạng Cisco Catalyst 8200 C8200L-1N-4T

Mã sản phẩm: C8200L-1N-4T
Nhà sản xuất:
Bảo hành: 12 tháng
  • Bộ định tuyến Router Cisco C8200L-1N-4T - Catalyst 8200L with 1-NIM slot and 4x1G WAN ports
  • Two Ethernet ports are Small Form-Factor Pluggable (SFP) and two are RJ45 ports
  • Slots : 1 NIM, 1 PIM
  • Memory (DRAM) default 4 GB
  • Storage (M.2 SSD) default 16 GB

Liên hệ báo giá

Sản phẩm liên quan

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

Catalyst 8200 Series Edge Platform Router CISCO C8200L-1N-4T

- Multicore processors: Intel x86 CPU with 4GB DRAM memory default.

- Embedded IPsec VPN hardware acceleration:

   + Enables up to 500 Mbps IPsec traffic;

   + Increases scalability for IPsec throughput requirements;

   + SSL and crypto hardware acceleration.

- Integrated Gigabit Ethernet ports:

   + Provides four built-in Ethernet WAN ports;

   + Two Ethernet ports are Small Form-Factor Pluggable (SFP) and two are RJ45 ports, enabling fiber as well as copper connectivity.

- Flash memory support: Both models have an integrated onboard 8-GB flash which is not upgradable. M.2 storage provides flash upgrade options.

- M.2 storage: The C8200L-1N-4T does not ship with a default M.2 storage but can be upgraded to 16G, 32G USB and 600G M.2 Non-Volatile Memory Express (NVMe) Storage.

- Power supply:

   + Both models use an internal, fixed AC power supply;

   + Power over Ethernet (PoE) is available as an option;

   + PoE ports added in the Network Interface Module (NIM) slot will require an additional external PoE power supply.

- Modularity and form factor:

   + 1-Rack Unit (1RU) form factor;

   + Supports NIM and Pluggable Interface Module (PIM) slots.

- Integrated security: Hardware-anchored Secure Boot and Secure Unique Device Identification (SUDI) support for Plug and Play to verify the identity of the hardware and software.

Model C8200L-1N-4T
Description  1 NIM slot and 4 x 1-Gigabit Ethernet WAN ports
1G port density 4
Slots 1 NIM, 1 PIM
Memory (DRAM) default 4 GB
Storage (M.2 SSD) default 16 GB
SD-WAN IPsec Throughput (1400Bytes, clear text) Up to 500Mbps
SD-WAN IPsec Throughput 400Mbps
SD-WAN Overlay Tunnels scale 1500
IPv4 Forwarding Throughput (1400Bytes) Up to 3.8Gbps
IPsec Throughput (1400Bytes, clear text) Up to 500Mbps
Number of IPsec SVTI Tunnels 1500
Number of ACLs per system 4000
Number of IPv4 ACEs per system 72K
Number of IPv4 Routes 800K w/ default 8GB, up to 4M w/ 32GB
Number of IPv6 Routes 800K w/ default 8GB, up to 4M w/ 32GB
Number of Queues 16K
Number of NAT Sessions 600K w/ default 8GB, up to 2M w/ 32GB
Number of Firewall Sessions 512K
Number of VRFs 2000
