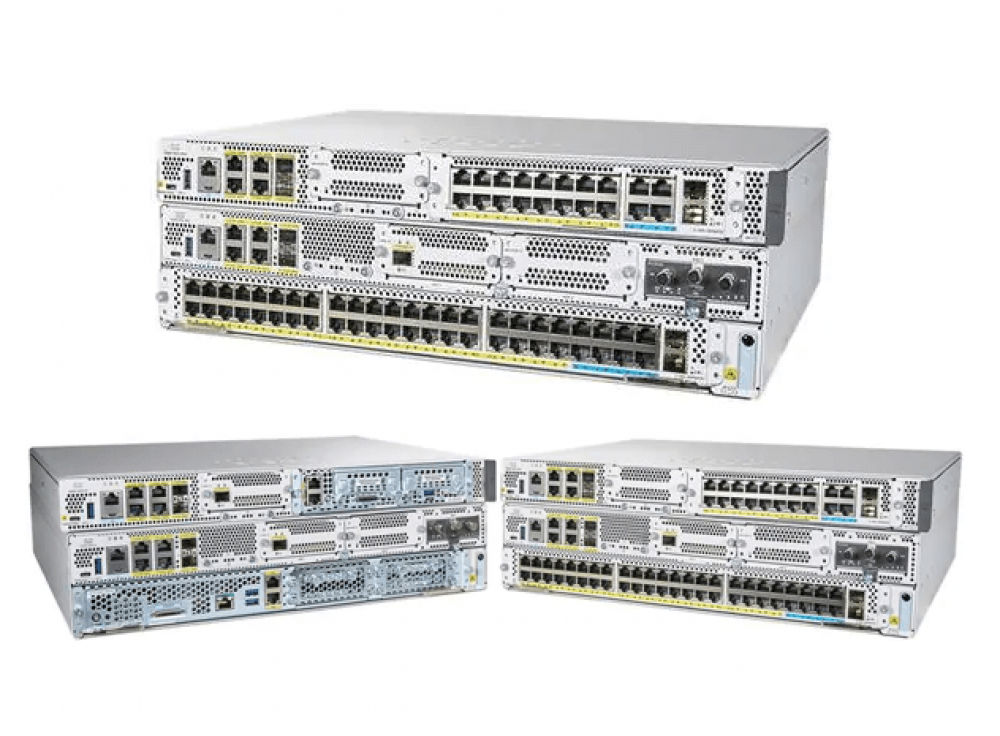

Router Cisco C8300-2N2S-4T2X Catalyst 8300 2RU with 10G WAN

Router Cisco C8300-2N2S-4T2X Catalyst 8300 2RU with 10G WAN

Mã sản phẩm: C8300-2N2S-4T2X
Nhà sản xuất:
Bảo hành: 12 tháng
  • Giao diện: 2 x 10GE SFP+, 4 x 1GE RJ-45 ports, 2 NIM và 2 SM slot
  • CPU x86, DRAM 8GB, Flash 8GB, SSD 16GB
  • Thông lượng chuyển tiếp IPv4: 19.7 Gbps
  • Thông lượng IPsec: 18.9Gbps
  • Thông lượng IPsec SD-WAN: 18.8Gbps
  • Hỗ trợ giao thức: Static Route, RIP, OSPF, EIGRP, BGP, IS-IS, OMP, RSVP, IGMPv3, ERSPAN, HSRP, VRRP, VRF, MPLS, DVMRP…

Liên hệ báo giá

Sản phẩm liên quan

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

Platform specifications
C8300 2RU w/ 10G WAN
(2 SM and 2 NIM slots, and 2 x 10-Gigabit Ethernet and 4 x 1-Gigabit Ethernet ports)		 10G port density: 2
1G port density: 4
Slots: 2 SM; 2 NIM; 1 PIM
Memory (DRAM) default: 8 GB
Storage (M.2 SSD) default: 16 GB
General
Typical power (watts) 275W
Software requirements Cisco IOS XE Software Release 17.3.2
Dimensions (H x W x D) 3.5 in. x 17.25 in. x 18.52 in.
Rack Units (RU) 2RU
Chassis weight with 2X AC power supplies and fan tray 40 lbs
Acoustics: Sound pressure (Typical/maximum) 59 dBa/73 dBa (Non-NEBS)
63 dBa/75 dBa (NEBS)
Acoustics: Sound power (Typical/maximum) 74 dBa/87 dBa (Non-NEBS)
77 dBa/89 dBa (NEBS)
Input voltage AC: 85 to 264 VAC
DC: -40 to 72V; 48V nominal
Operating temperature 32 to 104°F (0 to 40°C)
Storage temperature -40 to 150°F (-40 to 70°C)
Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) operating: 5 to 85%
Ambient (noncondensing) nonoperating and storage: 5 to 95%
Altitude 0 to 10,000 feet
(0 to 3050 meters)
Mean Time Between Failures (MTBF) 710,300 hours
Platform Performance
SD-WAN performance
SD-WAN IPsec Throughput (1400Bytes) Up to 18.8Gbps
SD-WAN IPsec Throughput with IQDF** (1400Bytes) Up to 18.8Gbps
SD-WAN IPsec Throughput (IMIX*) 7.6Gbps
SD-WAN IPsec Throughput with IQDF** (IMIX*) 5.6Gbps
SD-WAN Overlay Tunnels scale 6000
Note * IMIX is average packet size of 352 Bytes packet size
** IQDF traffic pattern: IPSec + Quality of Service (QoS) + Deep Packet Inspection (DPI) + Flexible Netflow (FNF)
SD-WAN, Multi-layer security performance use cases *
50% IQDF* + 50% (DIA w. NAT + NGFW + IPS + URLF + AMP) 5.9Gbps
DIA w. NAT + NGFW + IPS + URLF + AMP 4.9Gbps
Autonomous mode (non SD-WAN) performance specifications
IPv4 Forwarding Throughput (1400Bytes) Up to 19.7Gbps
IPsec Throughput (1400Bytes) Up to 18.9Gbps
IPsec Throughput (IMIX*) 9.3Gbps
Note * IMIX is average packet size of 352 Bytes packet size
Autonomous mode (non SD-WAN) system scalability
Number of IPsec SVTI Tunnels 4000
Number of ACLs per system 4000
Number of IPv4 ACEs per system 72K
Number of IPv4 Routes 1.6M w/ default
8GB, up to 4M w/ 32GB
Number of IPv6 Routes 1.5M w/ default
8GB, up to 4M w/ 32GB
Number of Queues 16K
Number of NAT Sessions 1.2M w/ default
8GB, up to 2M w/ 32GB
Number of Firewall Sessions 512K
Number of VRFs 4000
